12kv Vacuum Circuit Breaker High Voltage Switchgear Substation Transformer
Contact Person : Julia
Phone Number : 86-18037871307
WhatsApp : +8618037871307
| Minimum Order Quantity : | Negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. | Delivery Time : | Depends on the quality of client |
| Payment Terms : | 30% advanced payment , 70% balance payment before shipment. | Supply Ability : | 100 Set/Sets per Month 40.5kv Dead Tank High Voltage Circuit Breaker Price5 |
| Place of Origin: | China | Brand Name: | DINGLI |
|---|---|---|---|
| Certification: | CCC, CE, CQC, RoHS | Model Number: | ZW32-12F |
|
Detail Information |
|||
| Type: | Vacuum Circuit Breaker | Product Name: | Outdoor Voltage Circuit Breaker |
|---|---|---|---|
| Material: | Stainless Steel Or Hot-dip Galvanized Steel. | Altitude: | ≤2000m |
| Ambient Temperature: | -40°C-+45°C | Wind Speed: | 34m/s |
| Earthquake Intensity: | ≤ 8 Degre | Ice ThickNess: | 10mm |
| High Light: | hv circuit breaker,vacuum circuit breaker |
||
Product Description

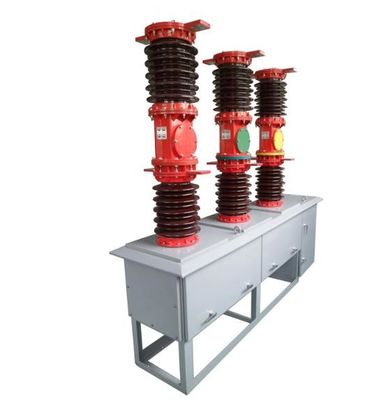

Ice Protection Substation Circuit Breaker 36kv Vacuum Outdoor Circuit Breaker
Quick Detail:China High Voltage Vacuum Outdoor Circuit Breaker With Ice Protection
Technical Parameter
| Type | Unit | LBIS-36/400 | LBIS-36/630 |
| Rated Voltage | KV | 36 | 36 |
| Rated Current | A | 400 | 630 |
| Frequency | Hz | 50/60 | 50/60 |
| Impulse Voltage (BIL) | KV | 185 | 185 |
| Power Frequency withstand Voltage | KV | 95 | 95 |
| Creepage Distance | MM | 1080 | 1080 |
| Weight | KGS | 11.5 | 12 |
| Package Size | CM | 140*85*97 | 140*85*97 |
| Standard |
IEC/IEEE and DVE-recommendation standards especially comply with DIN VDE 0670 part IEC-60265, IEC-129 |
| Features |
All steels are made of either in stainless steel or hot-dip galvanized steel. 1. Solid and stable base frame. 10. High reliabilty up to 1000 cycles (depending on the running current). 11. All contacts are either sliver or tin-plated. |
| Environmental Conditions |
Ambient Temperature: -30℃ - +40℃ Altitude: 3000m Frequency: 50Hz / 60Hz Maximum Wind Speed: 35m/s |
Workshop:
Shipping:
1. Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
The standard procedure for making wooden case is as follows:
1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.
Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.
2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
3. After-Sale Service
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.
Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.
Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.
