American Trunk Box Type Substation Switchgear Outdoor Compact Preinstalled Transformer

Contact Now

American Trunk Box Type Substation Switchgear Outdoor Compact Preinstalled Transformer

Name: American Trunk Box Type Substation Switchgear Outdoor Compact Preinstalled Transformer
Brand: American Trunk Box Type Substation Switchgear Outdoor Compact Preinstalled Transformer
SKU: American Trunk Box Type Substation Switchgear Outdoor Compact Preinstalled Transformer
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (153 reviews)

Minimum Order Quantity :	Negotiation	Price :	Negotiation
Packaging Details :	In standard export packages	Delivery Time :	Depends on the quality of client
Payment Terms :	30% advanced payment , 70% balance payment before shipment.	Supply Ability :	100 Set/Sets per Month

Certification:	ISO9001

Detail Information
Place Of Origin:	China	Brand Name:	DINGLI
Model Number:	YB -12/0.4	Color:	Non-metal, Green
Product Name:	American Trunk Transformer	Size:	Customizable
Technology:	Bending, Welding, Painting, Assembly	Material:	Composite Board
High Light:	American Trunk Substation Switchgear , Box Type Compact Preinstalled Transformer , American Trunk Compact Preinstalled Transformer

Product Description

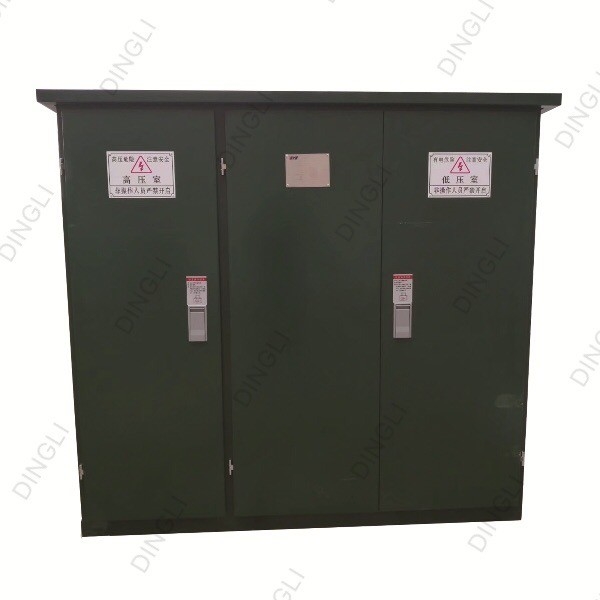

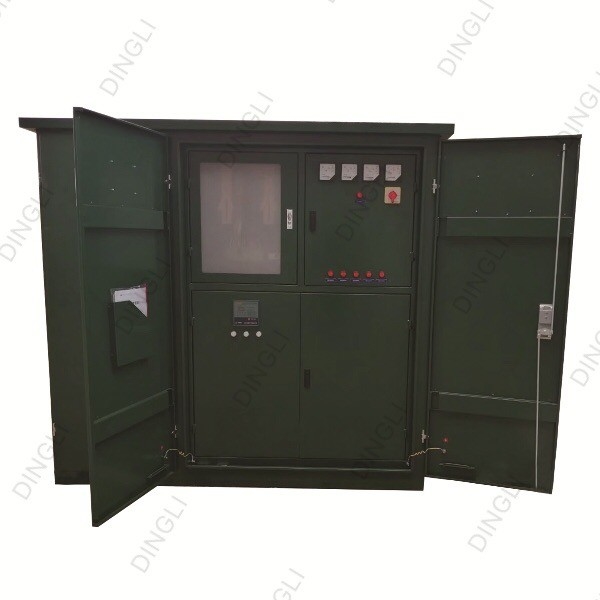

American Trunk Box Type Outdoor Compact Preinstalled Transformer Substation Switchgear

Product Details

Packaging & Delivery

Packaging Details

According to customer and transportation demand
1. Wrapped with plastic film .
2. Fixed in a wooden case .
3. Wooden case on a pallet .
4. Iron shelf
5. Special packaging: According to customer's requirement

Product Description

Overview

YB1-12/0.4 non-metallic shell preinstalled substation is a compact complete set of power distribution devices that preassemble the rated voltage 12kV high voltage distribution device , 12/0.4kV power transformer, low voltage

distribution device and energy metering device in a box . YB1-120.4 Non-metallic shell pre-installed substation is

mainly used for power supply and lighting in three-phase AC power system with rated frequency of 50Hz and rated voltage of 6-12/0.4kV. It is especially suitable for the transformation of distribution lines on both sides of the road in

the city network ,and can also be used in residential districts, streets, large construction sites, high-rise buildings, industrial and mining enterprises and temporary facilities. The product conforms to GB T17467 high voltage/low

voltage preinstalled substation, IEC601330 high voltage/low voltage preinstalled substation.

Feature

YB-12 series of products with beautiful shape, generous, excellent heat insulation performance and other

characteristics gradually favored by users. This series of preassembled substation adopts channel steel as base,

Angle steel as box frame (box body adopts sandwich color steel plate). The appearance of imported composite

board and aluminum-plastic board has excellent corrosion resistance, no rust, no fade, the overall structure is

simple, good rigidity, light weight, good heat insulation performance. The top cover is made of cold rolled plate

and glazed tile color steel plate. It has the properties of anti-explosion, anti-crack and anti-leakage. This series

of pre-installed substations are widely used in urban communities, commercial buildings and hotels, street

lighting projects, scenic spots and so on.

Application

Suitable for 10kV ring power supply , dual power supply or terminal power supply system , as a new residential area , green belt , park , station , dock , hotel , construction site , airport and other places of power transformation , distribution , metering , compensation , control and protection devices .

Regular Service Condition

1. The ambient air temperature does not exceed 40 , and the average measured within 24 hours does not exceed 35 .

The lowest ambient air temperature is -25 ; 2. The gas is not significantly contaminated by dust smoke corrosiveness and/or flammable gas vapor or salt slee t; 3. Relative humidity : the average relative humidity measured within 24 hours shall not exceed 95% , the average water vapor pressure measured within 24 hours shall not exceed 2.2kpa , the average monthly relative temperature shall not exceed 90% , and the average monthly water vapor pressure shall not exceed 1.8kpa; 4 . The inclination of the vertical plane shall not exceed 3 when the equipment is installed ; 5 The equipment should be installed in a place without violent vibration and impact note : users can negotiate with our company to solve special requirements .

Product performance
Power frequency voltage	High pressure chamber , 42kV/1min relative , 48kV/1min fracture ;
	Low voltage main circuit 2500V;
High voltage chamber lightning impulse voltage	75kV interphase , opposite ground , 85kV fracture
Temperature rise test	46.2A/1155A(High voltage loop/low voltage loop)
Main circuit short-time withstand current and peak withstand current test	30kA(effective value) , 63kA(peak value) , 1s
Grounding circuit short-time withstand current and peak withstand current test	20kA(effective value) , 2S :50kA(peak value)0.3s
Protection circuit continuity test	≤100mΩ
Protection level verification [enclosure	IP33D
Verify that the shell withstands mechanical stress test
Verify sound level test	≤55dB
Inspection standard	Gb17467-2010 "High voltage/Low voltage Pre-installed Substation"

Specification

Product Name	High and low voltage preinstalled substation/box transformer
Model	YB -12/0.4
Size	customizable
Color	Green
Material	Composite panel (the main body of the substation is mainly composed of metal materials, stainless steel materials and non-metallic materials, which can be selected by users and customers) Shell material has composite plate, aluminum - zinc plate, stainless steel plate, metal carved board
Remarks	For customized special models, once we get clear technical data or drawings, we can also make them.

Main technical parameters
Number	Item	Unit	High-Voltage Electrical Appliances	Transformer	SBLV
1	The rated electric	kV	6; 10	6/0.4, 10/0.4	0.4
2	Nominal capacity	kVA		Type I, 200-1250
2	Nominal capacity	kVA		Type II: 50-400
3	Rated current	A	630		100-200
4	Rated breaking current	KA	20.4		15-63
4	Rated breaking current	KA	31.5		15*1
5	Rated short-time withstand current	KA	20 * 2	200-400kVA	30*1
5	Rated short-time withstand current	KA	125 * 4	> 400kVA	30
6	Rated peak tolerance current	KA	31.5, 40	200-400kVA	63
6	Rated peak tolerance current	KA	31.5, 40	> 400kVA
7	Rated switching current	KA	31.5, 40
8	Power frequency withstand voltage 1min	kV	Opposite to 42	Oil invasion type: 35/5min	<300V,25kV
8	Power frequency withstand voltage 1min	kV	Isolation is broken E148	Dry type: 28/5 min	<300V,25kV
9	Lightning shock withstand voltage	kV(peak value)	Opposite to each other 75	75
9	Lightning shock withstand voltage	kV(peak value)	Isolation fracture 85	75
10	Case protection class		IP3X	IP2X	IP30
11	Noise level	dB		Oil invasion type: < 65
11	Noise level	dB		Dry type: < 65
Note: if the transformer capacity is less than 200KVA, item 5.6 is not required
